5mm Superflux LED,High Flux,Piranha

Features ：

● Pb free product—RoHS compliant
● Low power consumption, High efficiency
● High intensity
● I.C. compatible/low current requirement
● Versatile mounting on p.c. board or pannel
● General purpose leads Material:GaAllnP

Applications:
● max Applications Automotive Lighting
●Rear Combination Lamps
●Front Turn Signal Lamps
●High Mount Stop Lamps
●Electronic Signs and Signals
●Special Lighting application

Part Number	Chip			Lens Color	VF (V)If=20mA		IV (mcd)If=20mA		Angle 2θ 1/2
Part Number	Material	Emitted Color	Wave Length λD(nm)	Lens Color	Min	Max	Min	Max	Angle 2θ 1/2
EL-112RCC	GaAllnP	Red	620-635	Water Clear	1.9	2.3	1000	1500	80
EL-112RDC	GaAllnP	Red	620-635	Water Clear	1.9	2.3	2500	3000	80
EL-112YCC	GaAsP	Yellow	580-595	Water Clear	1.9	2.3	1000	1500	80
EL-112YDC	GaAsP	Yellow	580-595	Water Clear	1.9	2.3	2500	3000	80
EL- 112G2AC	InGaN	Cyan	505-510	Water Clear	2.9	3.5	2500	3000	80
EL- 112G4AC	InGaN	Green	520-530	Water Clear	2.9	3.5	1100	1800	80
EL- 112G4BC	InGaN	Green	520-530	Water Clear	2.9	3.5	2500	3300	80
EL-112BBC	InGaAlN	Blue	460-470	Water Clear	2.9	3.5	1000	1500	80
EL-112BCC	InGaAlN	Blue	460-470	Water Clear	2.9	3.5	1500	2200	80
EL-112WBC	InGaAlN	White		Water Clear	2.9	3.5	2000	3500	80
EL- 112WCC	InGaAlN	White		Water Clear	2.9	3.5	3000	4500	80

	Product Name+

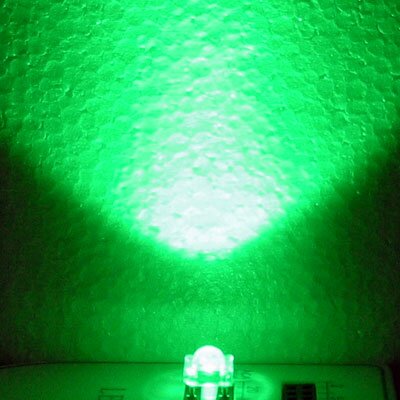

	5mm Piranha Super Flux LED (green)

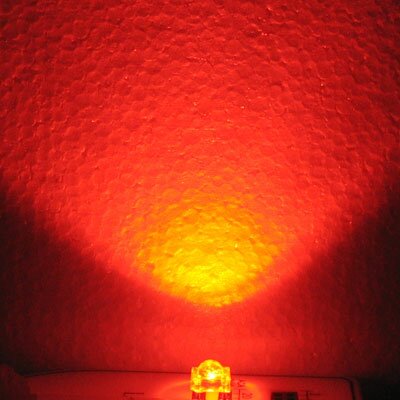

	5mm Piranha Super Flux LED (red)
	5mm Piranha Super Flux LED (warm white)

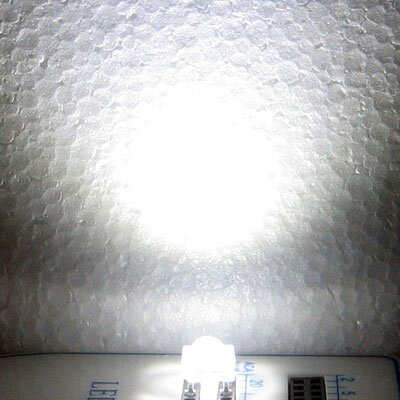

	5mm Piranha Super Flux LED (white)

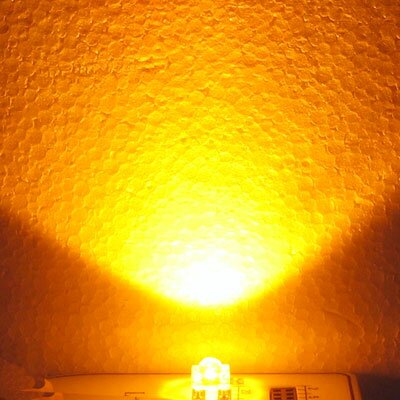

	5mm Piranha Super Flux LED (yellow)

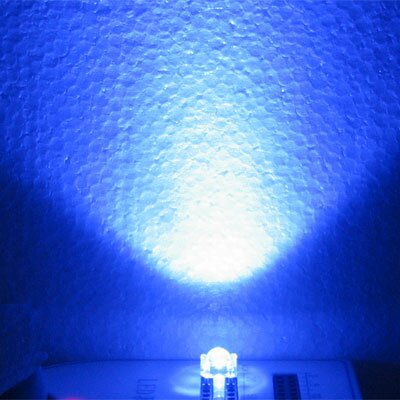

	5mm Super Flux LED (Blue)
