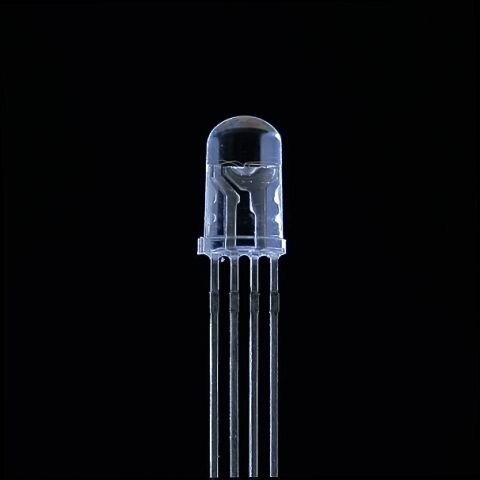

5mm Tri-Color LED

Features

  • Ultra bright luminous output,Red/Green/Blue
  • Available with common Anode or Cathode
  • Wide viewing angle
  • I.C.compatible/Low power consumption
  • Pb free & Hg free
  • RoHS compliant

  Applications

  • Decoration lights
  • Indication lights
  • Stage/concert lights
  • TV set, Monitor,Telephone, Computer,etc



Part Number       Chip Lens Color VF(V)If=20mA IV(mcd)If=20mA Angle
 2θ1/2
Emitted Color Wave Length λD(nm) Min Max Min Max
5039RGB-SB Red 635-650 Water Clear 1.9 2.5 2000 4500 40-50
Green 520-530 Water Clear 2.9 3.5 4000 7000 40-50
Blue 460-470 Water Clear 2.9 3.5 4000 7000 40-50

>15

IMAGE_BUTTON_SEND_INQUIRY
Currently viewing:  5mm Tri-Color LED Manufacturer Supplier
Categories
What's New? more

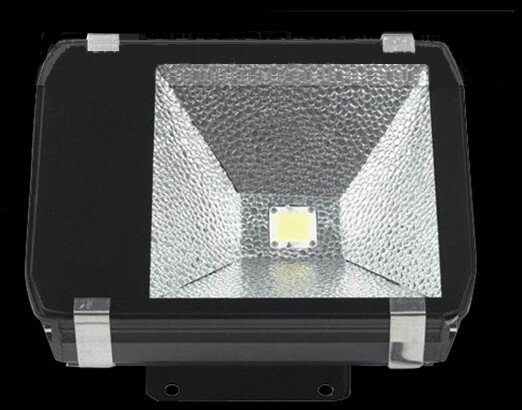

150W HIGH POWER LED FLOOD LIGHT
